ZSF-500 Sintering Furnace

ZSF-500 Sintering Furnace

The ZSF-500 is a high-performance zirconia sintering furnace with ultra-pure silicon molybdenum rod heating, 5-inch LCD touch screen, and air duct optimization. Sinters up to 50 teeth at a time with a maximum temperature of 1700°C.

SKU ZSF-500 Category Brand:

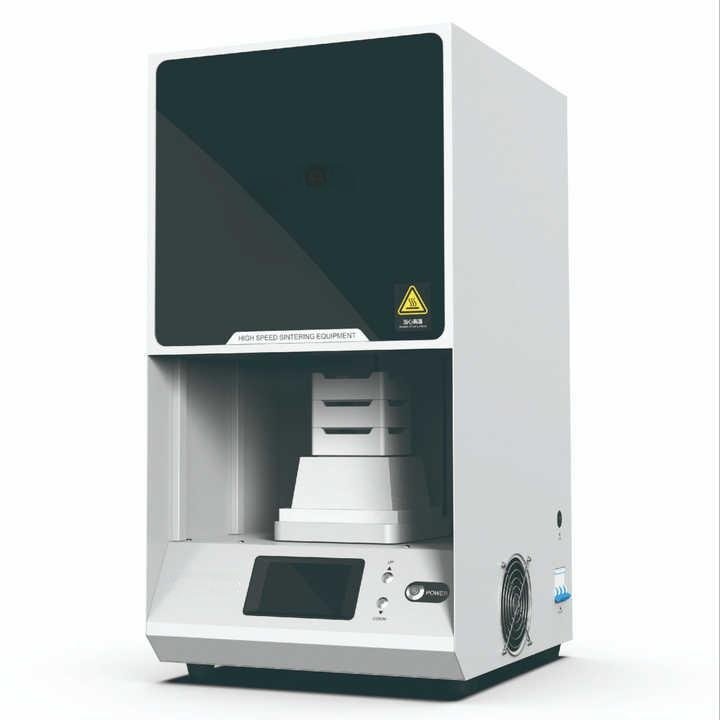

ZSF-500 Zirconia Sintering Furnace

The ZSF-500 is a high-performance zirconia sintering furnace designed for dental laboratories. Featuring ultra-pure silicon molybdenum rod heating elements and an intelligent air duct system, it delivers fast, uniform sintering for up to 50 teeth at a time — making it the ideal choice for high-volume production environments.

Key Features

  • Pollution-free: Clean sintering process with no harmful emissions
  • Speed and slow integrated sintering: Supports both rapid and gradual sintering curves
  • Up to 50 teeth at a time: High capacity for efficient batch processing
  • Ultra-pure silicon molybdenum rod: Ensures uniform heat distribution and long service life
  • 5 inch LCD touch screen: Intuitive interface for easy operation and monitoring
  • Air duct optimization: One-way closed channel design controls furnace surface temperature for consistent results
  • Unlimited sintering process storage: Full traceability memory for repeatable quality

Air Duct Optimization

By designing a one-way closed channel around the furnace, the cooling fan is used to blow air into the channel. The residual air in the channel is used to carry away the heat generated around the furnace, ensuring optimal temperature control and protecting the surrounding environment.

Technical Specifications

ParameterValue
NameZirconia Sintering Furnace
Power Supply220V / 50Hz
Power Rating2000W
Heating Rate≤120°C/min
CapacityUp to 50 units
Maximum Temperature1700°C
Package Size (L×W×H)518 × 605 × 873 mm
Gross Weight70 kg
